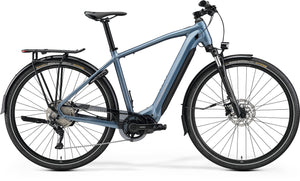

MERIDA eSPRESSO 500 EQ
PRE-ORDER NOW - AVAILABLE FROM 11/12/20
Stylish hybrid eBike with neatly integrated battery. Fully equipped with mudguards, rack, kickstand, lock and lights the eSpresso 500 EQ uses a Shimano Steps 6100 series 60NM motor with powerful 630W battery
SPECIFICATION
FRAME
- Hydroformed Prolite 66 triple butted aluminium, internal battery. A high front end and compact geometry make for an upright and comfortable riding position. Featuring, tapered head tube, smart entry internal cable routing and bolt through rear axle.
FORK
- Suntour NEX E25; Coil; 63mm travel
WHEEL SIZE
- 700c
RIMS
- Merida Comp TK; 20mm inner rim width; Material: aluminium
SPOKES
- Black stainless
FRONT HUB
- Shimano TX505; 100x9mm; 32 spokes; Centerlock
REAR HUB
- Shimano MT400; 142x12mm; 36 spokes; Centerlock; including removable lever with 4/6mm Allen key
FRONT TYRE
- Continental Ride Cruiser; 622-50; wire bead; reflective stripe
REAR TYRE
- Continental Ride Cruiser; 622-50; wire bead; reflective stripe
MOTOR
- Shimano E6100; 60Nm motor with Shimano E8036; 630Wh battery
BATTERY CAPACITY
- 630 Wh
EBIKE DISPLAY
- Shimano SC-E5000
GEARS
- 10
SHIFTERS
- Shimano Deore M4100
REAR DERAILLEUR
- Shimano Deore M5120
CHAINSET
- Shimano CRE61; 38 teeth chainwheel with Shimano FC-E6100; 170 mm length crank with chainguard
CASSETTE
- Shimano M4100; 11-46 teeth; 10 speed
BOTTOM BRACKET
- Part of Shimano Steps motor
CHAIN
- KMC e 10 Speed
PEDAL
- VP Components, VPE-891
BRAKE LEVER
- Shimano BR-MT200 (or Tektro HD-M275 if Shimano supply is delayed)
FRONT BRAKE
- Shimano BR-MT200; 2 piston hydraulic disc brake (or Tektro HD-M275) with Shimano RT10; 180mm rotor
REAR BRAKE
- Shimano BR-MT200; 2 piston hydraulic disc brake (or Tektro HD-M275) with Shimano RT10; 180mm rotor
GRIP
- Merida Expert TK
HANDLEBAR
- Merida Expert TK; aluminium; 660mm wide; 15mm rise
STEM
- Merida Expert CT; aluminium; 31.8mm diameter; adjustable - Length : 90 mm-XS/S/M, 110 mm-L/XL
HEAD SET
- Merida-8154 (for the steerer 1-1/8"), No. 6: 30D
SADDLE
- Merida Expert TK; V-mount
SEAT POST
- Merida Expert CC; aluminium; 34.9mm diameter; in-line
SEASON
- 2021
COLOUR
- Grey
OTHER
- Complete with: Kickstand, Abus frame lock, chainguard, mudguards, carrier with spring clip and front / rear lights.
GEOMETRY
