MERIDA SPEEDER 900
Fast and lightweight, the Speeder range shares its genes with our road bikes. The geometry is sporty yet comfortable with a more upright seating position. Paired with flat bars and powerful hydraulic disc brakes the Speeder is an ideal commuting bike. The frame can accomodate wider tyres making it more versatile - up to 37mm (32mm with mudguards). All models run hydraulic disc brakes for all weather reliability and come with a tapered carbon fork for light weight and steering precision. The Speeder 900 was very highly regarded by the UK cycling press in 2020. It boasts a full Shimano Ultegra 2 x 11 drivetrain with Shimano hydraulic disc brakes and a carbon seat post
SPECIFICATION
FRAME
- Lightweight 6066 triple butted and hydroformed aluminium frame with smooth welding, and internal cable routing. Complete with mudguard and rack mounts
FORK
- Speeder CF2; Tapered; carbon
WHEEL SIZE
- 700c
RIMS
- Merida Expert SL; 17mm inner rim width; 22 depth; Material: aluminium
SPOKES
- Black stainless
FRONT HUB
- Joytech D471SBT-SC-CL; 100x9mm; 28 spokes; centerlock; Quick Release
REAR HUB
- Joytech D472TSBT-SC-CL; 135x9mm; 28 spokes; centerlock; Quick Release
FRONT TYRE
- Maxxis Detonator; 700 x 32C; Kevlar bead; folding
REAR TYRE
- Maxxis Detonator; 700 x 32C; Kevlar bead; folding
GEARS
- 22
SHIFTERS
- Shimano SL-RS700
FRONT DERAILLEUR
- Shimano Ultegra
REAR DERAILLEUR
- Shimano Ultegra
CHAINSET
- Shimano Ultegra; 50-34 teeth - 170 mm-XS/S, 172,5 mm-SM/ML, 175 mm-L/XL
CASSETTE
- Shimano CS-R7000; 11-32 teeth; 11 speed
BOTTOM BRACKET
- Shimano BB-RS500 BSA
CHAIN
- KMC X11
PEDAL
- VP Components, VPE-891
BRAKE LEVER
- Shimano MT-501
FRONT BRAKE
- Shimano MT-500 with Shimano RT10; 160mm rotor
REAR BRAKE
- Shimano MT-500 with Shimano RT10; 160mm rotor
GRIP
- Merida Expert EC
HANDLEBAR
- Merida Expert CC; aluminium; 600mm wide; Flat
STEM
- Merida Expert CC; aluminium; 31.8mm diameter; 5 degree rise - Length : 80 mm-XS, 90 mm-S, 100 mm-SM/ML, 110 mm-L/XL
HEAD SET
- Merida M2331 Neck
SADDLE
- Merida Comp SL; V-mount; including. Merida minitool
SEAT POST
- Merida Expert CC; Material: carbon; 30,9mm diameter; 15mm lay back
SEASON
- 2021
COLOUR
- Black

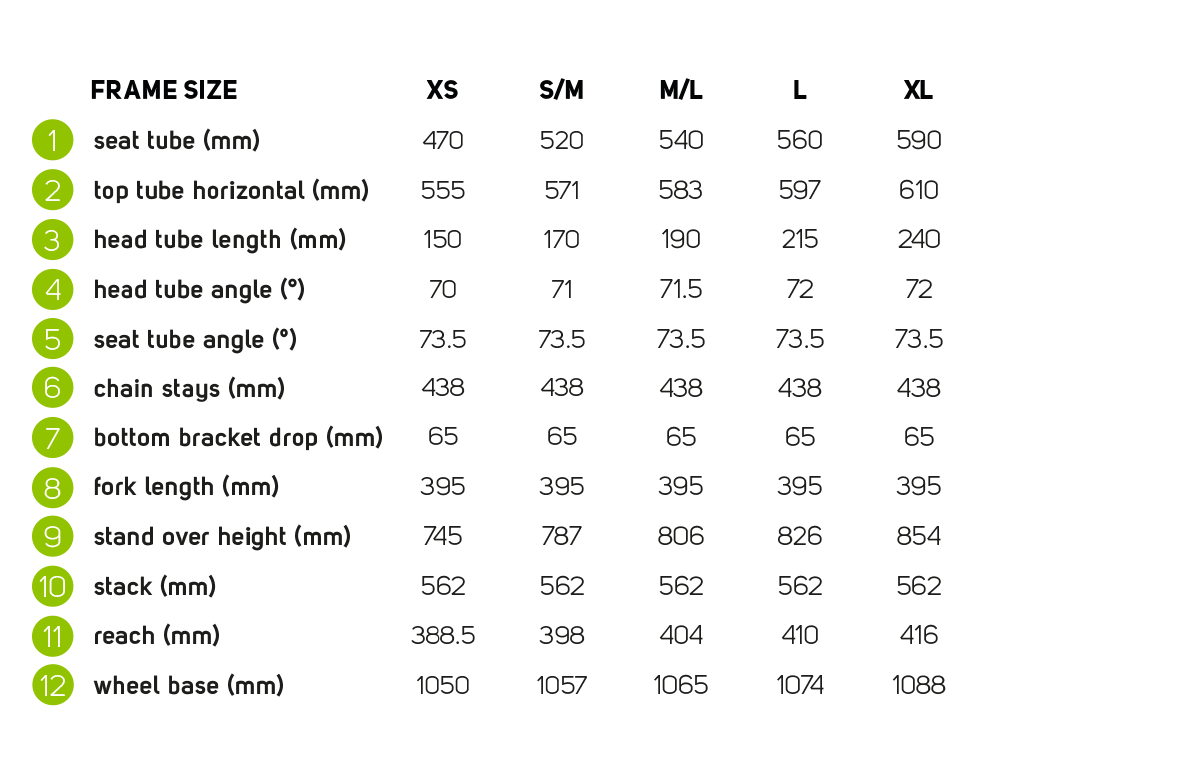

GEOMETRY
